In orthopedic surgery, even a small implant can make a big difference in how well a fracture heals. Among the simplest yet most essential devices are the Steinmann Pin and Denham Pin — two trusted options for skeletal traction and bone stabilization. Though similar in appearance, they serve distinct purposes. Understanding when and why to choose one over the other can help surgeons ensure optimal fixation and faster recovery for patients.
Selecting the right orthopedic pin will not just improve your fixation but can also lower the chances of complications and boost your recovery journey. In this article, we shall explore in detail the differences between the Denham and Steinman pins to be able to understand them. This will also be of great help to the orthopedic surgeons to make an informed decision.
What is a Steinman Pin?
A Steinman pin is a robust metallic rod that is usually made up of stainless steel or titanium and many other materials. These pins are usually available in smooth or partially threaded form, which is commonly found in diameters that range from 2.0 mm to 6.0 mm. The most common indications of the Steinman pins are:
Typical situations where Denham pins are selected include:
-
Patients who have weak bone density, such as the elderly and people suffering from osteoporosis.
-
Used for orthopedic cases where pin migration can be a complication.
-
Long-term skeletal traction, especially for femoral shaft fractures
What are the Key Advantages & Disadvantages of These Two Pins?
1. Steinman Pin
Key Advantages Associated with Steinman Pins
-
Simple design, versatile, and cost-efficient
-
Quick insertion and removal
-
Prone to loosening if traction is extended
Key Disadvantages Associated with Steinman Pins
-
The smooth surface of the pin leads to its loosening over time.
-
Requires frequent monitoring and adjustments.
-
Not ideal for osteoporotic bones.
-
Long-term use of these orthopedic pins can cause a pin tract infection.
2. Denham Pin
Key Advantages Associated with Denham Pins
-
Threaded ends reduce the risk of migration
-
Superior anchorage in compromised bone
-
More technique-sensitive and slightly higher in cost
Key Disadvantages Associated with Denham Pins
-
The threaded pins can cause damage to the bones when not placed properly.
-
The time-consuming surgical process is compared to the use of Steinman pins.
-
Removal of these pins can be difficult, particularly when bone is formed around the threads.
Key Factors to Consider While Choosing the Right Pin - Steinman or Denham
Picking the Steinman or Denham pin of both is a task that requires anyone involved to have sufficient knowledge of the orthopedic implants/products, medical condition, and the surgical procedure involved.
The intended duration of traction is usually considered first. A Steinman pin is adequate when stabilization is required for only a few days or during an intraoperative stage. If traction is expected to continue for several weeks, however, the Denham pin becomes a more secure option because its threaded ends resist migration.
The condition of the bone is another decisive point. In younger patients, dense and healthy bone generally allows a Steinman pin to be inserted without difficulty. Fragile or osteoporotic bone tells a different story; in such cases, the grip provided by a Denham pin is far more reliable.
Attention must be paid to the pin migration risk. The smooth pins used during an orthopedic surgery can shift due to body weight caused by moving around for your daily activities. However, even a slight movement can complicate even a simple case of fracture.
Lastly, the severity of an orthopedic medical emergency determines which product is to be chosen. An emergency trauma requires quick stabilization, and the Steinman pin provides quick insertion with minimal technical demand. Carefully planned procedures promise accurate placement of the Denham pin, which makes them an informed choice for long-term stability.
Keeping all of these factors in mind allows orthopedic surgeons to align the implant with the patient’s condition and surgical procedure.
Steinman Pins or Denham Pins: What Should Be Your Choice?
The choice to make between Denham and Steinman pins is not a random decision. It is about making an informed opinion by analyzing the duration of traction required in an orthopedic treatment, the bone quality of the patient, and the stability needed. A Steinman pin is a very effective and affordable option for short-term medical cases, whereas a Denham pin provides superior stability, which makes it the implant of choice for long-term cases that include poor bone quality.
Understanding the Differences between Steinman Pins and Denham Pins
Both pins serve the same basic purpose — providing skeletal traction or temporary fixation — but differ in design and application. The Steinmann Pin is typically smooth or partially threaded, while the Denham Pin features threads at one or both ends for stronger bone purchase.
The right choice depends on bone quality, traction duration, and the patient’s overall condition.

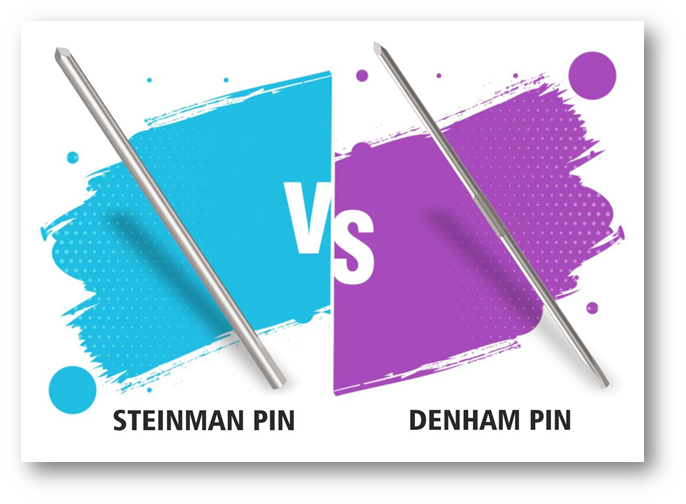

Comparison Table: Steinmann Pin vs Denham Pin
| Feature |
Steinmann Pin |
Denham Pin |
| Design |
Smooth or partially threaded rod (2.0–6.0 mm)
|
Threaded at one or both ends for better grip and anchorage
|
| Primary Uses |
stabilization, quick intraoperative fixation
|
Long-term traction, osteoporotic bone, cases prone to migration
|
| Bone Quality |
Ideal for healthy, dense bone
|
Better suited for osteoporotic or weak bone
|
| Insertion / Removal |
Easier to insert and remove; less technique-sensitive
|
Requires more surgical skill; removal may be harder if bone grows around threads
|
| Migration Risk |
Slightly higher (may loosen during prolonged traction)
|
Minimal; threads reduce risk of pin migration
|
| Cost & Complexity |
Lower cost; simple to use
|
Slightly higher cost; more time and precision required
|
| Best Clinical Scenarios |
Emergency stabilization, short-term traction, young patients
|
Long-term traction, osteoporotic bone, high-risk migration cases
|
Clinical Considerations
The decision to use one pin over the other depends on several clinical variables.
-
Duration of traction: Steinman pins are suitable for temporary fixation and short-term traction. For prolonged traction, the Denham pin provides a safer option.
-
Risk of migration: The possibility of pin migration is higher with a Steinman pin, which makes Denham preferable in situations where stability is critical.
-
Surgical emergency: In emergency trauma settings, a Steinman pin may be chosen for its speed and simplicity. In planned procedures requiring sustained traction, Denham is the more appropriate choice.
-
Quality of Bone: Patients who have a healthy bone structure can bear with the Steinman pins properly. A threaded Denham pin works best in osteoporotic and fragile bones.
Both types play an essential role in ensuring proper alignment and controlled healing of fractures — particularly in lower limb surgeries such as femoral shaft fractures.
Frequently Asked Questions (FAQs)
Q 1. Can both Steinmann and Denham pins be used for skeletal traction?
Yes. Both pins can be used for skeletal traction. The Steinmann Pin is commonly used for short-term traction and rapid stabilization, while the Denham Pin is preferred when traction is expected to continue for several weeks or when migration is a concern.
Q 2. Which pin is better for patients with osteoporosis?
The Denham Pin is generally preferred for osteoporotic bone. Its threaded design offers superior anchorage and minimizes the risk of loosening, which can occur in weaker bone.
Q 3. Are there higher infection risks with long-term pin use?
Yes, any pin used for extended periods carries some risk of pin-tract infection. Maintaining sterile dressing techniques, minimizing pin movement, and performing regular cleaning significantly reduce infection risks.
Q 4. Can Denham pins be difficult to remove?
Yes — if bone grows around the threaded section, removal can be slightly more challenging and may require a specific extraction technique. However, this trade-off provides much better stability during treatment.
Q 5. How should distributors present these pins to surgeons?
Distributors can emphasize clinical suitability when promoting these pins:
-
Steinmann Pin → for quick stabilization and short-term traction
-
Denham Pin → for long-term traction and osteoporotic bone
Including technical specifications, material grades, and case studies adds credibility when presenting to surgeons.
Q 6. What product details should distributors highlight when promoting these pins?
Focus on the following:
-
Available diameters and lengths
-
Material composition (stainless steel or coated variants)
-
Thread configuration (single or double end)
-
Sterilization and packaging type
-
Compliance with ISO/CE certifications
Q 7. Do Steinmann and Denham pins come with standard sterilization or custom packaging options?
Yes. At Sharma Orthopedic India Ltd., both pre-sterilized and non-sterile variants are available. Custom packaging — such as bulk or single sterile pouches — can be provided to meet hospital or distributor preferences.
Conclusion
Choosing between a Steinmann and Denham Pin is less about which is “better” and more about which is right for the specific case. A skilled surgeon evaluates bone quality, traction needs, and procedural requirements before selecting the implant that ensures the best possible outcome.
At Sharma Orthopedic India Ltd., we are committed to manufacturing high-quality orthopedic implants — including both Steinmann and Denham pins — that meet international standards for safety, precision, and clinical performance to support surgeons in delivering optimal treatment. Our focus remains on empowering surgeons and improving patient recovery worldwide.
