Suitable for

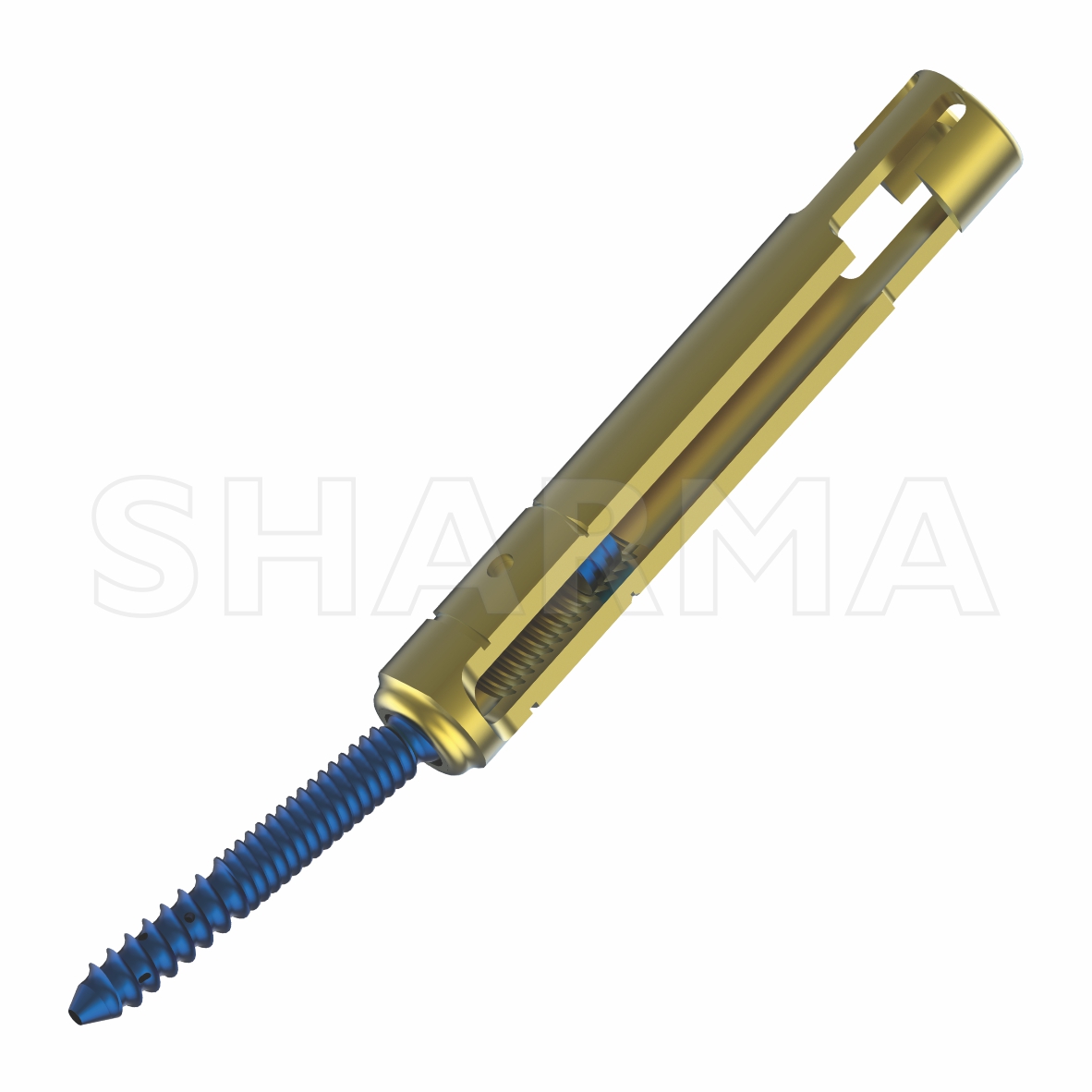

- Square Threaded Locking Cap geometry reduces risk of cross threading.
- Double-lead thread and an aggressive thread pitch promote rapid screw insertion and pull-out resistance, resulting in a more stable construct.
- 40° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patient’s individual anatomy.
- Strong screw-sleeve connection prevents sleeve disassociation during surgery
- 125mm Extended Tab allows for low profile, MIS percutaneous placement.
- 20mm of controlled reduction.
- Cannulation allows for injection of cement through the screw.
- Rod Reduction & Compression/Distraction Instrumentation facilitates placement.
Dia.
4.5 mm, 5.5 mm, 6.5 mm
Length
25.0 mm to 60.0 mm (Diff. 5.0 mm)
Material
Titanium Alloy (ISO 5832-3)
| LENGTH | CAT. NO. TITANIUM |
|---|
| 4.5 MM | 5.5 MM | 6.5 MM |
|---|
| | | | |
| 25.0 MM | SO20.TIT.14110 | SO20.TIT.14118 | SO20.TIT.14126 |
| 30.0 MM | SO20.TIT.14111 | SO20.TIT.14119 | SO20.TIT.14127 |
| 35.0 MM | SO20.TIT.14112 | SO20.TIT.14120 | SO20.TIT.14128 |
| 40.0 MM | SO20.TIT.14113 | SO20.TIT.14121 | SO20.TIT.14129 |
| 45.0 MM | SO20.TIT.14114 | SO20.TIT.14122 | SO20.TIT.14130 |
| 50.0 MM | SO20.TIT.14115 | SO20.TIT.14123 | SO20.TIT.14131 |
| 55.0 MM | SO20.TIT.14116 | SO20.TIT.14124 | SO20.TIT.14132 |
| 60.0 MM | SO20.TIT.14117 | SO20.TIT.14125 | SO20.TIT.14133 |
