Suitable for
- Double-lead thread for cancellous bone.
- Quad lead thread for cortical bone.
- Optimized Tip - Self-tapping, self-cantering tip allows for insertion with or without tapping.
- Square Threaded Locking Cap geometry reduces risk of cross threading.

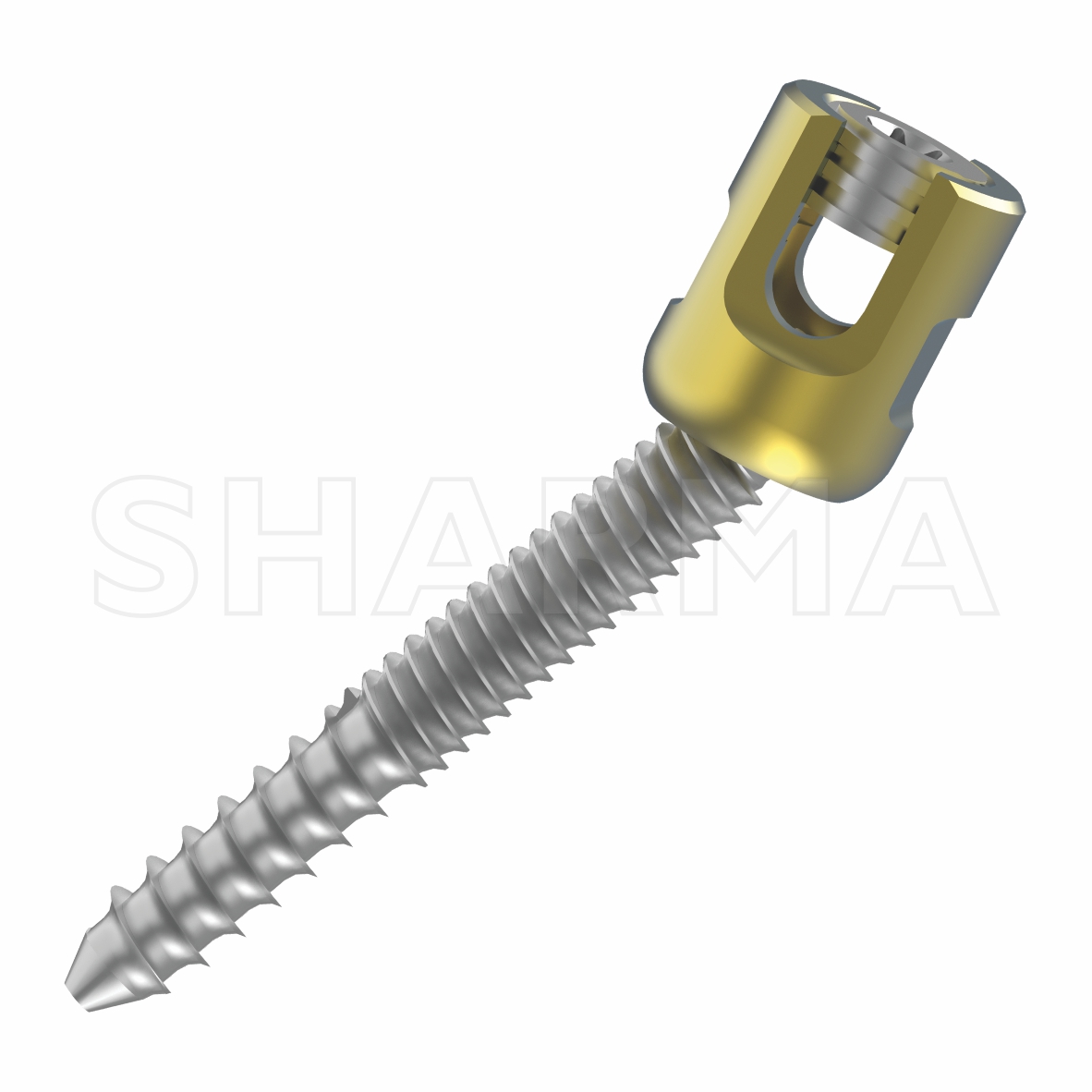

- 44° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patients individual anatomy.
Dia.
4.5 mm, 5.5 mm, 6.5 mm
Length
25.0 mm to 60.0 mm (Diff. 5.0 mm)
Material
Titanium Alloy (ISO 5832-3)
| LENGTH | CAT. NO. TITANIUM |
|---|
| 4.5 MM | 5.5 MM | 6.5 MM |
|---|
| | | | |
| 25.0 MM | SO20.TIT.14062 | SO20.TIT.14070 | SO20.TIT.14078 |
| 30.0 MM | SO20.TIT.14063 | SO20.TIT.14071 | SO20.TIT.14079 |
| 35.0 MM | SO20.TIT.14064 | SO20.TIT.14072 | SO20.TIT.14080 |
| 40.0 MM | SO20.TIT.14065 | SO20.TIT.14073 | SO20.TIT.14081 |
| 45.0 MM | SO20.TIT.14066 | SO20.TIT.14074 | SO20.TIT.14082 |
| 50.0 MM | SO20.TIT.14067 | SO20.TIT.14075 | SO20.TIT.14083 |
| 55.0 MM | SO20.TIT.14068 | SO20.TIT.14076 | SO20.TIT.14084 |
| 60.0 MM | SO20.TIT.14069 | SO20.TIT.14077 | SO20.TIT.14085 |
